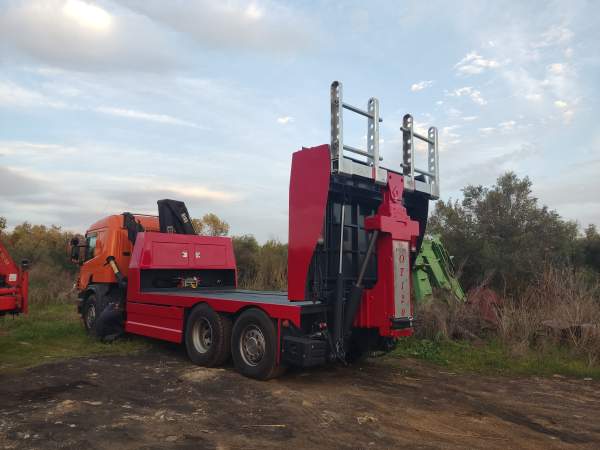

Flatbeds

Specifications

• Stable platform with length 6000mm-8000mm (unfolded).(the length depends of the truck’s wheelbase)

• Lift capacity 10.000kg

• Width 2350mm-2550mm

• Anti-slip platform deck with thickness 5mm

• 2 double act cylinders to lift the tail of the platform with counter balance valves

• 2 extend/retract hydraulic cylinders to extend the 2 telescopic ramps of the tail

• Vime winch 5.2ton pulling capacity with free rope mechanism

• Oil tank with filter and oil gauge

• Hydraulic pump 60lt/min

• Directional control valve manual working

• Points to tie every meter

• Plastic box for directional control valves

• Emergency stop button

• Bumper in the rear for lights

• Flyer in front customizable

*Optional

• Radio remote control from 1-5 movements
• Hydraulic movement of winch right/left

*Our list of optional is endless. Please contact us for anything EXTRA want to place to your platform. Everything is possible.

Specifications

•  Slide bed platform with length 5000mm-6500mm.

• Lift capacity 6.000kg.

• Width 2200mm-2550mm.

• Antis lip platform deck with thickness 3mm.

• 2 double act cylinders to lift platform with counter balance valves.

• 1 extend/retract hydraulic cylinder.

• Ertalon plastic to all range of tubes where platform slides.

• BIM MOSXOS winch 3ton pulling capacity

• The base for the winch moves left-right manually.

• Oil tank with filter and oil gauge.

• Hydraulic pump.

• Directional control valve manual working.

• Points to tie every meter.

• Stops in the front of the platform for the towed car’s tires.

• Plastic box for directional control valves.

• Emergency stop button.

• Bumper in the rear for lights.

• Flyer in front customizable.

*Optional

• Radio remote control from 1-5 movements
• Hydraulic movement of winch right/left

* Our list of optional is endless. Please contact us for anything EXTRA want to place to your platform. Everything is possible.

Specifications

•  Slide bed platform with length 6000mm-6500mm.

• Lift capacity 8.000kg.

• Width 2350mm-2550mm.

• Antis lip platform deck with thickness 4mm.

• 2 double act cylinders to lift platform with counter balance valves.

• 1 extend/retract hydraulic cylinder.

• Ertalon plastic to all range of tubes where platform slides.

• Vime winch 5.2ton pulling capacity with free rope mechanism.

• The base for the winch which moves left-right manually.

• Oil tank with filter and oil gauge.

• Hydraulic pump 60lt/min.

• Directional control valve manual working.

• Points to tie every meter.

• Stops in the front of the platform for the towed car’s tires.

• Plastic box for directional control valves.

• Emergency stop button.

• Bumper in the rear for lights.

• Flyer in front customizable.

Optional*

• Radio remote control from 1-5 movements
• Hydraulic movement of winch right/left

* Our list of optional is endless. Please contact us for anything EXTRA want to place to your platform. Everything is possible.

Specifications

• Slide bed platform with  length of 5000mm-6000mm
• Lifting capacity 5,000kg
• Platform width from 2450mm-2500mm. (the width cannot be changed because it will not fit the second vehicle at the bottom of the platform)
• 3mm thick flat floor anti-slip
• Two double act hydraulic cylinders to lift  platform, equipped with a double brake valve
• A hydraulic cylinder for extending/retracting the platform
• Double deck manual safety lock with the use of metal pins
• Ertalon plastic to all range of tubes where the platform slides
• Double deck for a second vehicle with a lifting capacity of 2,000kg, length 4000mm and width 2350mm
• Two double-acting hydraulic cylinders for raising the second deck, equipped with a double brake valve
• Manually operated hydraulic controls
• Tie points per meter
• Stops at the front for the front wheels of the loaded vehicle
• Oil tank with filter and oil gauge
• BIM MOSXOS winch 3 ton pulling capacity
• Plastic box for directional control valves
• Emergency stop button
• Bumper in the rear for lights
• Flyer in front customizable

 Optional*

• Radio remote control from 1-5 movements
• Hydraulic movement of winch right/left

* Our list of optional is endless. Please contact us for anything EXTRA want to place to your platform. Everything is possible.

Specifications

•  Slide bed platform with length 5000mm-6500mm

• Lift capacity 3.500kg

• Width 2200mm-2550mm

• Anti-slip platform deck with thickness 2.5mm

• 2 double act cylinders to lift platform with counter balance valves

• 1 extend/retract hydraulic cylinder

• Ertalon plastic to all range of tubes where platform slides

• BIM MOSXOS winch 3ton pulling capacity

• The base for the winch moves left-right manually

• The back part of the platform is foldable

• Oil tank with filter and oil gauge

• Hydraulic pump

• Directional control valve manual working

• Points to tie every meter

• Stops in the front of the platform for the towed car’s tires

• Plastic box for directional control valves

• Emergency stop button

• Bumper in the rear for lights

• Flyer in front customizable

Optional

• Radio remote control from 1-5 movements
• Hydraulic movement of winch right/left

* Our list of optional is endless. Please contact us for anything EXTRA want to place to your platform. Everything is possible.

Specifications

•  Slide bed platform with length 5000mm-6500mm

• Lift capacity 3.500kg

• Width 2200mm-2550mm

• Antis lip platform deck with thickness 2.5mm

• 2 double act cylinders to lift platform with counter balance valves

• 1 extend/retract hydraulic cylinder

• Ertalon plastic to all range of tubes where platform slides

• BIM MOSXOS winch 3ton pulling capacity

• The base for the winch moves left-right manually

• Oil tank with filter and oil gauge

• Hydraulic pump

• Directional control valve manual working

• Points to tie every meter

• Stops in the front of the platform for the towed car’s tires

• Plastic box for directional control valves

• Emergency stop button

• Bumper in the rear for lights

• Flyer in front customizable

Optional*

• Radio remote control from 1-5 movements
• Hydraulic movement of winch right/left

* Our list of optional is endless. Please contact us for anything EXTRA want to place to your platform. Everything is possible.

Specifications

•  Slide bed platform with length 6000mm-6500mm.

• Lift capacity 10.000kg.

• Width 2350mm-2550mm.

• Antis lip platform deck with thickness 5mm.

• 2 double act cylinders to lift platform with counter balance valves.

• 1 extend/retract hydraulic cylinder.

• Ertalon plastic to all range of tubes where platform slides.

• Vime winch 5.2ton pulling capacity with free rope mechanism.

• The base for the winch which moves left-right manually.

• Oil tank with filter and oil gauge.

• Hydraulic pump 80lt/min.

• Directional control valve manual working.

• Points to tie every meter.

• Stops in the front of the platform for the towed car’s tires.

• Plastic box for directional control valves.

• Emergency stop button.

• Bumper in the rear for lights.

• Flyer in front customizable.

Optional*

• Radio remote control from 1-5 movements
• Hydraulic movement of winch right/left

* Our list of optional is endless. Please contact us for anything EXTRA want to place to your platform. Everything is possible.

Specifications

• Motor bike lift mechanism from steel S275jr
• Lift Capacity 700 kg
• Platform dimensions 3000 mm x 1800 mm/ 3500 mm x 2000 mm
• Direction control levels housed in a closed steel structure
• Steel closed boxes with safety and key lock
• Anti-slip protection on the plateau
• Plastic rollers in the back of the platform
• Hydraulic cylinder for extension
• 12v electric hydraulic pump
• 2 hydraulic cylinders for lifting
• 3 positions to lock motor bike
• Lock valve to lift hydraulic cylinders
• Weight 400 kg
• CE certification

Optional*

• Radio remote control from 1-3 movements

* Our list of optional is endless. Please contact us for anything EXTRA want to place to your platform. All feasible.

Dimensions of platform are manufactured according to customer's truck.
